HPE Proliant DL325 Gen10 Plus (Long Chassis): Specs and Rack Compatibility

The HPE Proliant DL325 Gen10 Plus (Long Chassis) is a secure and versatile single socket server for virtualization, I/O intensive and storage intensive workloads. This 1U server delivers an exceptional balance of processor, memory and I/O for 2P performance at 1P TCO. For businesses looking to optimize their virtualized environment, the long chassis variant is great for achieving massive amounts of storage capacity and higher networking speeds.

Proliant DL325 Gen10 Plus (Long Chassis) Mounting Equipment:

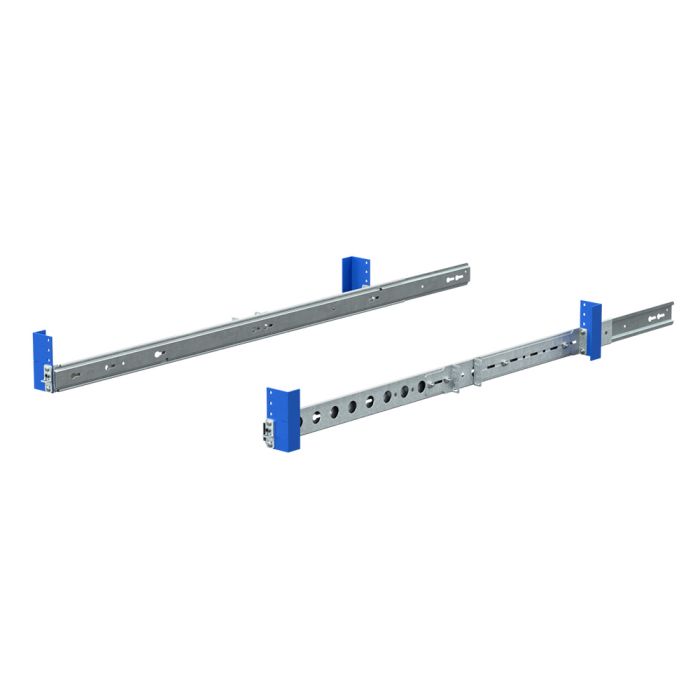

• Slide Rail: 1U Raven 140-A Dry Slide Rail for HPE
• 4 Post Racks: 19” width, 20”-30” mounting depth
• 2 Post Racks: 19” width, 3”-6” uprights

Proliant DL325 Gen10 Plus (Long Chassis) Mounting Specifications

Chassis Dimensions:

• Length (depth): 39.71” (1008.63 mm)
• Width: 17.11” (434.59 mm)
• Height: 1.69” (42.92 mm)
• Weight: 20.0 kg to 32.0 kg (44.09 lb to 70.55 lb)

Mounting Requirements:

• U height: 1U
• Rack width: 17.11”
• Mountable depth: 39.71”

Proliant DL325 Gen10 Plus (Long Chassis) Plus Hardware Specifications

• RAM: Up to 2 TB of DDR4 memory across 16 DIMM slots; 16 DIMM slots per processor, 8 channels per processor, and 2 DIMMs per channel; Maximum capacity (RDIMM) 1.0 TB 16 x 64 GB RDIMM @ 3200 MT/S at 1 DPC
• Storage: 4LFF drives; 8SFF + Optional 2SFF (SAS/SATA or NVMe)
• CPU options: Single 2nd or 3rd generation AMD EPYC 7000 series processor
• Power: 1X500W HPE FlexSlot Power Supply; HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• Remote management: HPE iLO 5 ASIC, HPE iLO Standard with Intelligent Provisioning

Proliant DL325 Gen10 Plus (Long Chassis) Dimensions and Rack Compatibility

The Proliant DL325 G10 Plus (Long Chassis) chassis is 1 rack unit in height, has a depth of 39.71 inches and will fit in standard EIA 19 inch racks.

Rails allow for the most efficient use of space when mounting servers. RackSolutions specifically designed a slide rail kit to fit the shoulder screws of the DL325 G10 Plus (Long Chassis).
