The HPE SimpliVity 380 Gen10 is a compact and scalable server that delivers storage networking services and hyperconverged efficiency with built-in data protection. This 2U server delivers world-class performance with the right balance of expandability and scalability. Designed for diverse virtualized workloads, it provides a complete set of advanced functionality that improves management, protection, and performance. These improvements are made at a fraction of the cost and complexity of today’s traditional infrastructure stack for businesses.
SimpliVity 380 Gen10 Mounting Equipment:

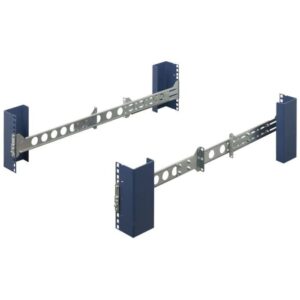

- Slide Rail: 2U Raven 105-A Rail for HPE
- 4 Post Racks: 19” width, 20”-30” mounting depth
- 2 Post Racks: 19” width, 3”-6” uprights
- Universal Rail: 1U Universal Rack Rails
- 4 Post Shelf: Rack Mount Sliding Shelf
- 2 Post Shelf: Light Duty Server Rack Shelf 24″
SimpliVity 380 Gen10 Mounting Specifications
Chassis Dimensions:
- Length (depth): 26.75” (679.45 mm)
- Width: 17.54” (445.51 mm)
- Height: 3.44” (87.37 mm)
- Weight: 23.6 kg (51.5 lb) maximum
Mounting Requirements:
- U height: 2U
- Rack width: 17.54”
- Mountable depth: 26.75”
SimpliVity 380 Gen10 Hardware Specifications
- RAM: 144GB to 3072GB per node selectable
- Storage: Two All Flash Storage Options (4000/6000 Series) and Five Capacity Points: Extra Small – 5 x 960GB SSD Kit, Small – 5 x 1.92TB SSD Kit, Medium – 9x 1.92TB SSD Kit, Large – 12 x 1.92TB SSD Kit, Extra Large – 12 x 3.84TB SSD Kit (4000 Series only)
- CPU options: 2x Intel Xeon Scalable Processors 8 to 28 cores selectable, 1 or 2CPU options
- Power: HPE 800W FS Plat Hot Plug Power Supply Kit, HPE 800W FS -48VDC Hot Plug Power Supply Kit, HPE 800W FS Titanium Hot Plug Power Supply Kit, HPE 800W FS Universal Hot Plug Power Supply Kit, HPE 1600W FS Platinum Hot Plug LH Power Supply Kit
- Remote management: HPE iLO (Integrated Lights-Out) and the SimpliVity Deployment Manager
SimpliVity 380 Gen10 Dimensions and Rack Compatibility
The SimpliVity 380 Gen10 chassis is 2 rack units in height, has a depth of 26.75 inches and will fit in standard EIA 19 inch racks.
Rails allow for the most efficient use of space when mounting servers. RackSolutions specifically designed a slide rail kit to fit the shoulder screws of the SimpliVity 380 Gen10.
Universal rails that have a height of 2U and support up to 26.75 inches of depth will be compatible with the SimpliVity 380 Gen10. A benefit of these is the ability to re-use them for different servers or future upgrades. Plus, it’s easy to slide your server in and out of them for maintenance.
