The HPE ProLiant DL325 Gen10 Plus (Short Chassis) is a secure and versatile single socket server. This 1U server features greater processing power, faster memory speeds up to 3200 MT/s. and improved data transfer rates with PCIe Gen4 capabilities. Designed for virtualization, I/O intensive and storage intensive workloads, this rack server provides a highly versatile solution for business applications.
Proliant DL325 Gen10 Plus (Short Chassis) Mounting Equipment:

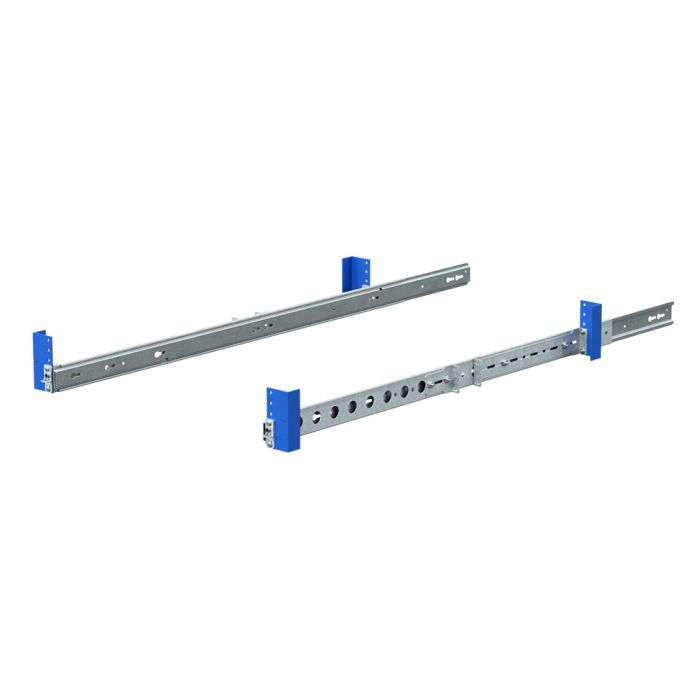

- Slide Rail: 1U-2U HP Dry Sliding Rail Kits for Gen 10 Plus
- 4 Post Racks: 19” width, 20”-30” mounting depth
- 2 Post Racks: 19” width, 3”-6” uprights
- Universal Rail: 1U Universal Rack Rails
-
4 Post Shelf: Rack Mount Sliding Shelf
- 2 Post Shelf: Light Duty Server Rack Shelf 24″
Proliant DL325 Gen10 Plus (Short Chassis) Mounting Specifications
Chassis Dimensions:
- Length (depth): 32.52” (826 mm)
- Width: 17.11” (435 mm)
- Height: 1.69” (43 mm)
- Weight: 25.9 kg (57.09 lbs) maximum
Mounting Requirements:
- U height: 1U
- Rack width: 17.11”
- Mountable depth: 32.52”
Proliant DL325 Gen10 Plus (Short Chassis) Plus Hardware Specifications
-
RAM: HPE DDR4 Smart Memory, 16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel
-
Storage: Storage capabilities with ability to upgrade to 24SFF/12 LFF drives; HPE Smart Array P408i-a and/or HPE Smart Array P816i-a and/or HPE Smart Array E208i-a, and more
-
CPU options: 2nd Generation AMD EPYC 7000 Series
-
Power: HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
-
Remote management: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced (require license)
Proliant DL325 Gen10 Plus (Short Chassis) Dimensions and Rack Compatibility
The Proliant DL325 Gen10 Plus (Short Chassis) chassis is 1 rack unit in height, has a depth of 32.52 inches and will fit in standard EIA 19 inch racks.
Rails allow for the most efficient use of space when mounting servers. RackSolutions specifically designed a slide rail kit to fit the shoulder screws of the DL325 Gen10 Plus (Short Chassis).
Universal rails that have a height of 1U and support up to 32.52 inches of depth will be compatible with the Proliant DL325 Gen10 Plus (Short Chassis). A benefit of these is the ability to re-use them for different servers or future upgrades. Plus, it’s easy to slide your server in and out of them for maintenance.
