The Dell PowerEdge 1950 III provides outstanding virtualization performance in a 2-socket rack server, combined with optional, factory integrated virtualization capabilities. This 1U rack server delivers both computing power and availability for organizations who seek rack density. For large enterprises or small businesses, this rack server is an excellent platform for thin client/server based computing and SAN computer node as well as virtualization.
PowerEdge 1950 III Mounting Equipment
- Slide Rail: 1U 115-F Fixed Rail for Dell
- 4 Post Racks: 19” width, 20”-30” mounting depth
- 2 Post Racks: 19” width, 3”-6” uprights
- Universal Rail: 1U Universal Rack Rails
- 2 Post Fixed Shelf: 1U 115 2Post Sliding Equipment Shelf 27in Depth
PowerEdge 1950 III Mounting Specifications
Chassis Dimensions:
- Length (depth): 30” (762 mm)
- Width: 18.0” (457 mm)
- Height: 2.0” (50 mm)
- Weight: 18.14 kg (40 lbs) maximum weight
Mounting Requirements:
- U height: 1U
- Rack width: 18”
- Mountable depth: 30”
PowerEdge 1950 III Hardware Specifications
- RAM: Up to 64 GB (8 FBD DIMM slots): 512 MB/1 GB/2 GB/4 GB/8 GB 667 MHz Fully Buffered DIMMs (FBD) in matched pairs
-
Storage: Up to 1.5 TB via two 3.5” 750 GB hot-plug SATA hard drives
-
CPU options: Up to two quad-core or dual-core Intel Xeon 5400, 5300, 5200, or 5100 series standard or low-volt processors at up to 3.16 GHz
-
Power: 670W, optional hot-plug redundant power (1+1)
-
Remote management: Dell OpenManage
PowerEdge 1950 III Dimensions and Rack Compatibility
The PowerEdge 1950 III chassis is 1 rack unit in height, has a depth of 30 inches and will fit in standard EIA 19 inch racks.

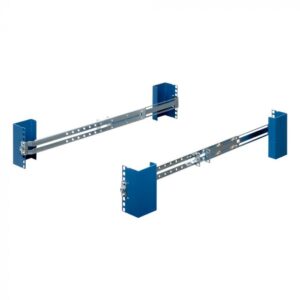

Rails allow for the most efficient use of space when mounting servers. RackSolutions specifically designed a slide rail kit to fit the shoulder screws of the PowerEdge 1950 III.
Universal rails that have a height of 1U and support up to 31.5 inches of depth will be compatible with the PE 1950 III. A benefit of these is the ability to re-use them for different servers or future upgrades. Plus, it’s easy to slide your server in and out of them for maintenance. You can also use our slam latch accessory kit for your Dell servers to be secured in place when using our universal rails. The retaining plate is only compatible with 1U-2U standard width universal rails.
